CONSOLE LID REMOVAL/INSTALLATION

id091700607400

1.  Move the console panel in the direction of arrows (1) and (2) shown in the figure and detach the clips from the rear console.

ac5uuw00003685

2.  Remove the console panel from the rear console.

3.  Open the console lid and remove the screws.

ac5uuw00003733

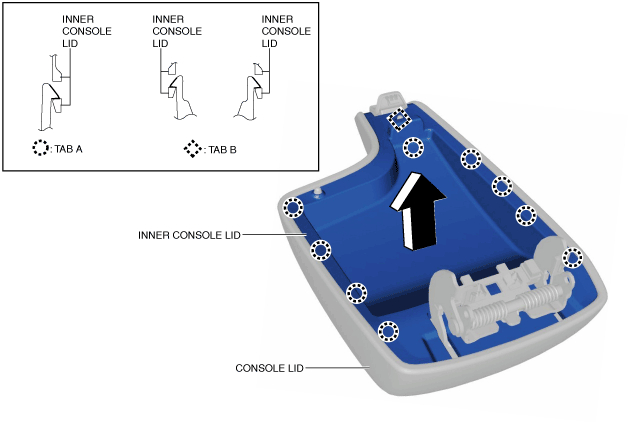

4.  Using the remover tool, detach tabs A and B shown in the figure from the console lid.

ac5uuw00004719

5.  Remove the inner console lid from the console lid.

6.  Install in the reverse order of removal.
