DASHBOARD DISASSEMBLY/ASSEMBLY
id091700800400

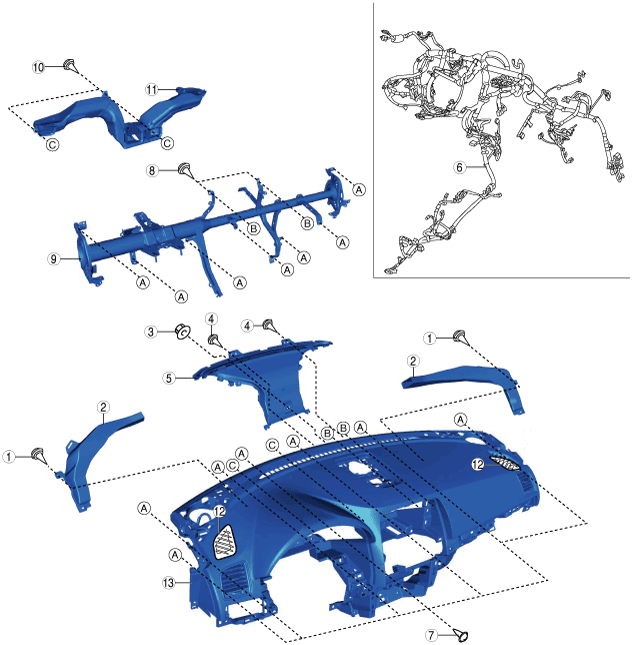

1. Disassemble in the order indicated in the table.
ac5uuw00004292
|
|
1
|
Screw
|
|
2
|
Side defroster
|
|
3
|
Nut
|
|
4
|
Screw
|
|
5
|
Center defroster
|
|
6
|
Wiring harness
|
|
7
|
Screw
|
|
8
|
Screw
|
|
9
|
Dashboard member
|
|
10
|
Screw
|
|
11
|
Duct
|
|
12
|
Demister grille
|
|
13
|
Dashboard
|
2. Assemble in the reverse order of disassembly.
