COLUMN COVER REMOVAL/INSTALLATION

id091700800800

1.  Pull down the steering wheel.

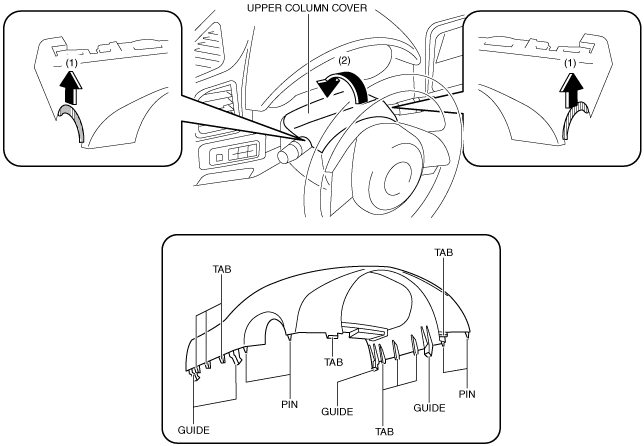

2.  Press the shaded area shown in the figure using your thumb, and lift the upper column cover in the direction of arrow (1).

ac5uuw00003621

3.  Pull the upper column cover in the direction of the arrow (2) and remove it while detaching pins, tabs and guides.

4.  Remove tabs from the meter hood.

Caution

•  If the cover of the meter hood is deformed, it may not return to its original condition. When removing the cover of the meter hood, detach tabs one by one from the upper column cover.

ac5uuw00003622

5.  Pull up the steering wheel.

6.  Remove screws.

ac5uuw00003623

7.  Open the lower column cover in the direction of arrow (1) shown in the figure, move the lower column cover in the direction of arrow (2), and detach the tabs of the light switch and the wiper and washer switch from the lower column cover.

ac5uuw00003624

8.  Lower the adjusting lever to the bottommost position.

ac5uuw00003625

Caution

•  If the adjuster lever is pulled down to the bottommost position and the lower column cover is removed while the steering wheel is not secured, the lower column cover will interfere with the driver-side lower panel and could cause damage to the lower column cover and driver-side lower panel.Secure the steering wheel when removing the lower column cover.

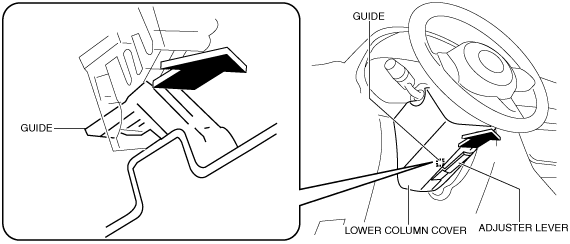

9.  Move the lower column cover in the direction of the arrow shown in the figure and remove it while pulling out the guide.

ac5uuw00003626

10.  Install in the reverse order of removal.
