FRONT SCUFF PLATE REMOVAL/INSTALLATION

id091700801400

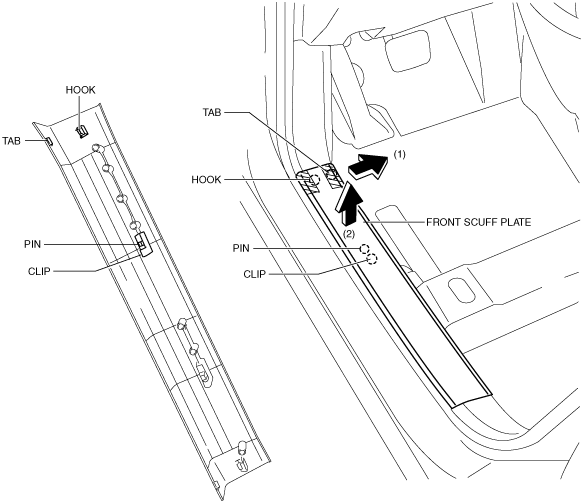

1.  Take the shaded area shown in the figure, detach tab while pulling the front scuff plate in the direction of the arrow (1) shown in the figure, then detach the hook, clip, and pin while pulling in the direction of the arrow (2).

ac5wzw00007492

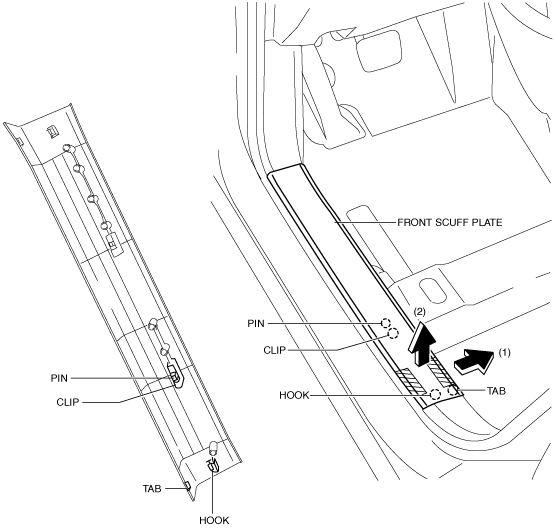

2.  Take the shaded area shown in the figure, detach tab while pulling the front scuff plate in the direction of the arrow (1) shown in the figure, then detach the hook, clip and pin while pulling in the direction of the arrow (2).

ac5uuw00004418

3.  Install in the reverse order of removal.
