REAR SCUFF PLATE REMOVAL/INSTALLATION

id091700801500

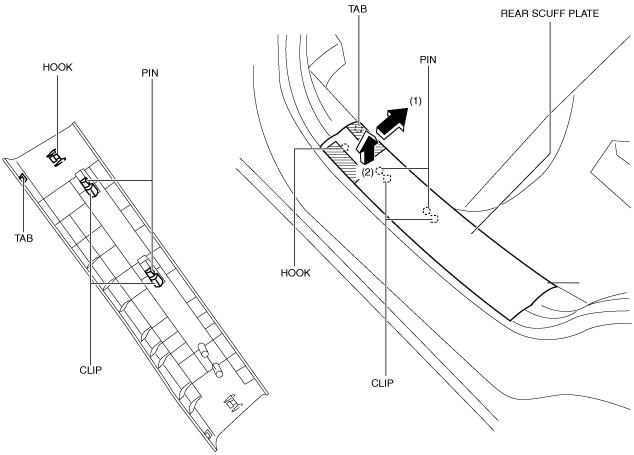

1.  Take the shaded area shown in the figure, detach tab while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach hook, clips, pins while pulling in the direction of the arrow (2).

ac5uuw00004419

2.  Take the shaded area shown in the figure, detach tab while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach the hook while pulling in the direction of the arrow (2).

ac5uuw00004420

3.  Install in the reverse order of removal.
