FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804200

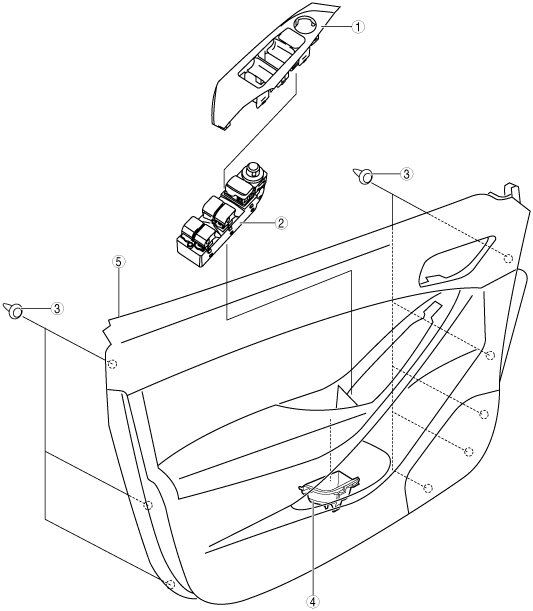

Driver-side

1.  Disassemble in the order shown in the figure.

ac5wzw00007501

1	Switch panel cover
2	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
3	Fastener
4	Pocket
5	Front door trim

2.  Assemble in the reverse order of disassembly.

passenger-side

1.  Disassemble in the order shown in the figure.

ac5wzw00007502

1	Switch panel cover
2	Power subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
3	Fastener
4	Pocket
5	Front door trim

2.  Assemble in the reverse order of disassembly.
