CENTER PANEL REMOVAL/INSTALLATION

id091700804500

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

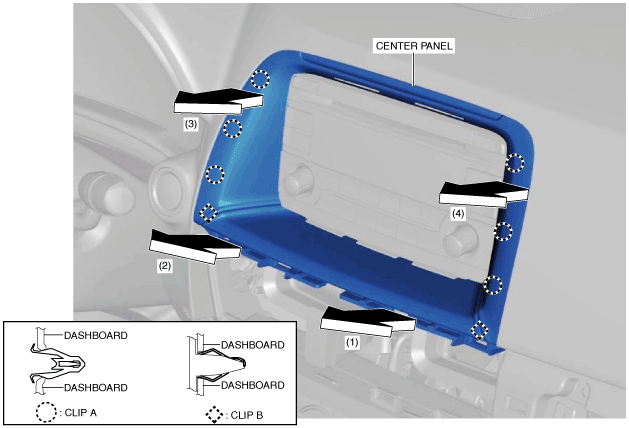

4.  Move the center panel in the order of arrows (1), (2), (3) and (4) shown in the figure, and detach clips A and B.

ac5uuw00003627

5.  Install in the reverse order of removal.
