VENTILATOR GRILLE REMOVAL/INSTALLATION

id091700804600

Side Ventilator Grille

Driver-side

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2. Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION.)

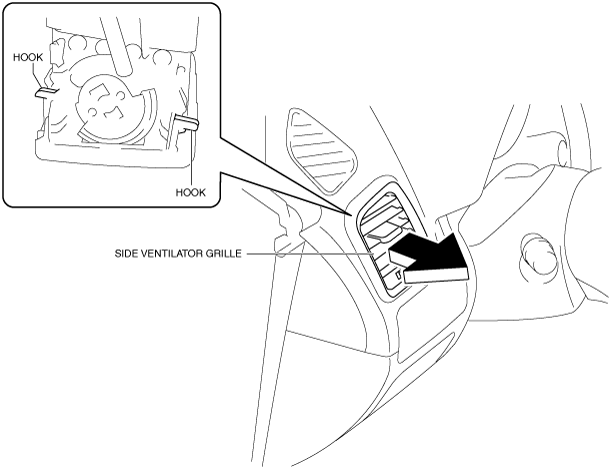

3. Insert your hand from the area where the switch panel was installed, remove the side ventilator grille in the direction of the arrow shown in the figure while detaching hooks.

ac5uuw00004457

4. Install in the reverse order of removal.

Passenger-side

2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

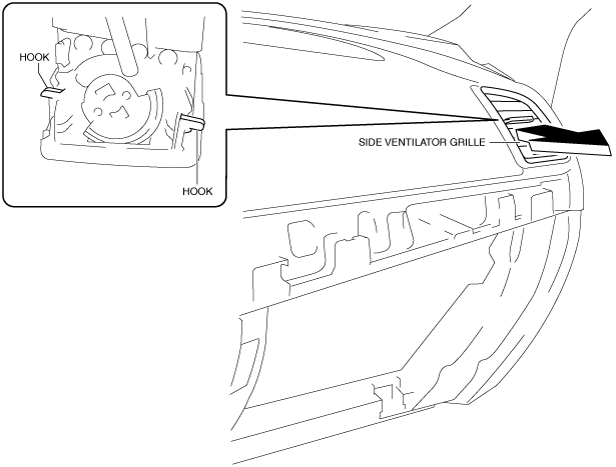

3. Insert your hand from the area where the glove compartment was installed, remove the side ventilator grille in the direction of the arrow shown in the figure while detaching hooks.

ac5uuw00004458

4. Install in the reverse order of removal.

Center Ventilator Grille

2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

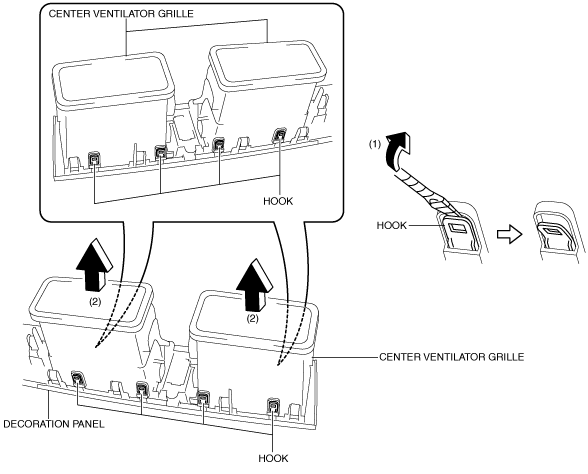

4. Push the edge of center ventilator grille in the direction of arrow (1) and detach hooks.

ac5uuw00004459

5. Remove the center ventilator grille in the direction of arrow (2) shown in the figure.

6. Install in the reverse order of removal.
