REAR CONSOLE DISASSEMBLY/ASSEMBLY

id091700898600

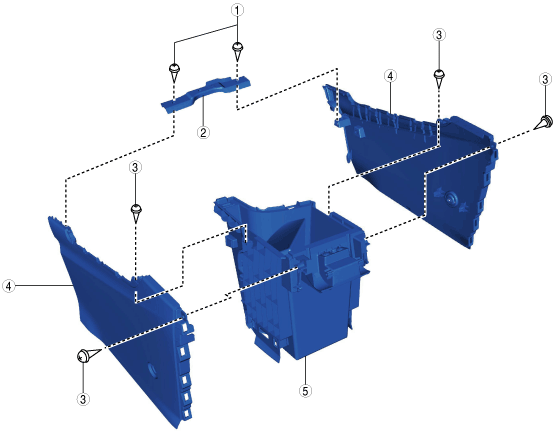

1.  Disassemble in the order indicated in the table.

ac5uuw00003697

1	Screw
2	Rear console bracket
3	Screw
4	Side panel
5	Rear console box

2.  Assemble in the reverse order of disassembly.
