HEADLIGHT LEVELING SWITCH

id091800010800


Purpose

•  Changes the resistance value according to the position which the headlight leveling switch has been changed.

Function

•  The position of the headlight leveling switch can be switched between 11 levels: 0 to 5.
•  When the headlight leveling switch is turned upward, the headlight LO optical axis moves upward. When the switch is turned downward, the axis moves downward.

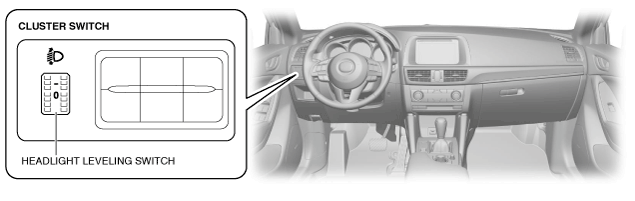

Construction

•  Built into the cluster switch.
ac5wzn00002921

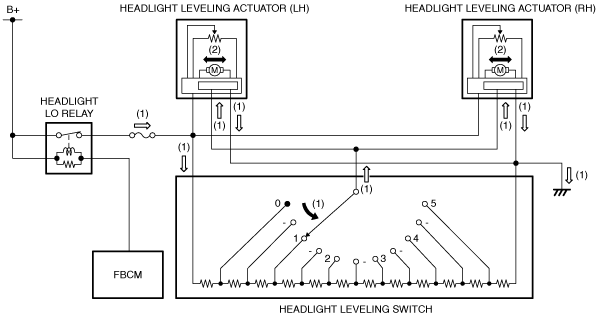

Operation

1.  When the headlight leveling switch is operated with the headlights turned on, the resistance value changes according to the changed position, and electric current flows to the headlight leveling actuator.

2.  The headlight leveling actuator operates and the headlight LO optical axis changes.

ac5wzn00002922

Fail-safe

•  Not applicable
