AUTO LEVELING SENSOR

id091800011100


Purpose

•  The auto leveling sensor detects the vehicle height and outputs it to the AFS control module/adaptive LED headlights control module.

Function

•  The auto leveling sensor changes the detected vehicle height into a voltage value and outputs it to the AFS control module/adaptive LED headlights control module.

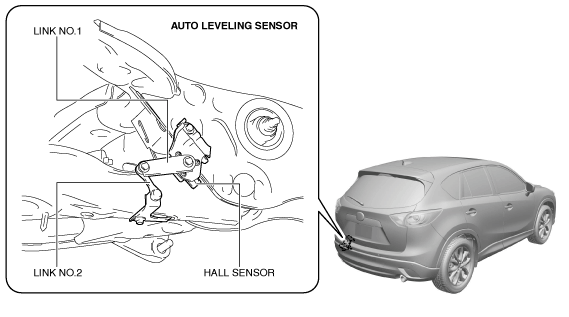

Construction

•  Installed to the rear cross member.
•  Consists of link No. 1, link No.2 and the Hall sensor.
ac5wzn00002926

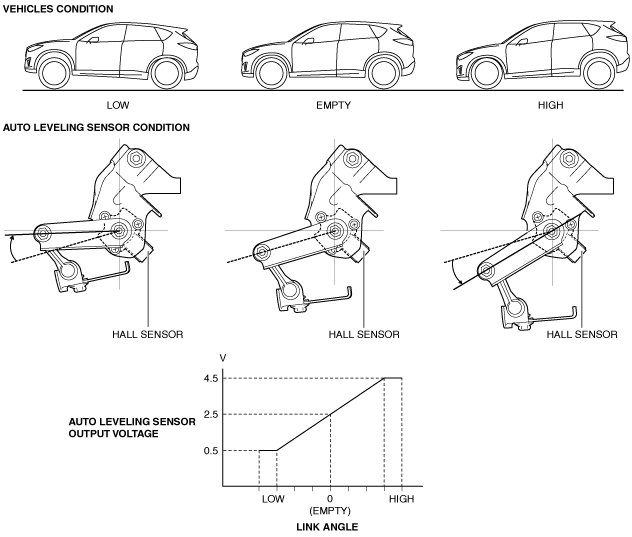

Operation

1.  If the rear crossmember slumps under a load and passengers, the auto leveling sensor link changes.

2.  The auto leveling sensor changes the voltage value according to the angles of the links and outputs to the AFS control module/adaptive LED headlights control module.

ac5wzn00002927

Fail-safe

•  Not applicable
