FRONT FOG LIGHT

id091800011300

Purpose

• Visibility during poor weather conditions such as rain and fog has been improved by the front fog lights emitting light over a wider angle than the light from the headlights. In addition, the visibility of the vehicle by on-coming vehicles, pedestrians, and other people has been improved.

Function

• Illuminates according to the light switch and front fog light switch operation.

Construction

• Round-type fog lights are installed to the front bumper.

• A bulb type or LED type is available for the front fog light.

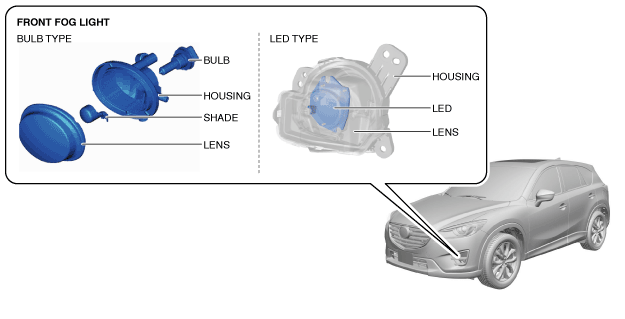

ac5wzn00002931

Operation

1. With the light switch in the TNS, HEAD, or HI position, a front fog light switch signal is sent to the start stop unit when the fog light switch is operated to the F. FOG position.

2. The start stop unit sends the front fog light switch signal to the front body control module (FBCM).

3. When the front body control module (FBCM) receives the fog light switch signal, it turns the front fog light relay on.

4. When the front fog light relay turns on, the front fog light illuminates.

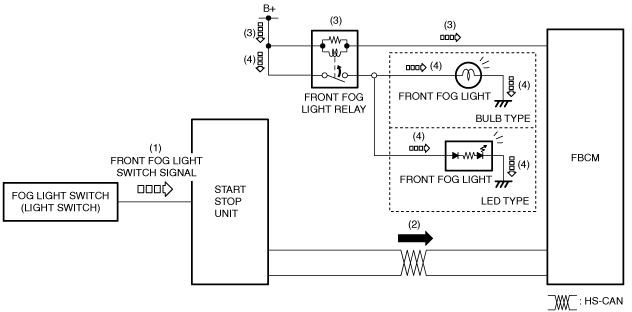

ac5wzn00002932

Fail-safe

• Not applicable
