SIDE TURN LIGHT

id091800011400

Purpose

• The side turn lights are used to signal vehicles/people at the side of the vehicle that the vehicle is going to make a right or left turn.

Function

• The side turn lights flash according to the operation of the turn or the hazard warning switch.

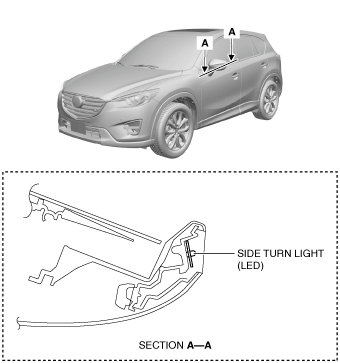

Construction

• Side turn lights built into the outer mirrors have been adopted.

• LED type side turn lights have been adopted.

ac5wzn00002933

Operation

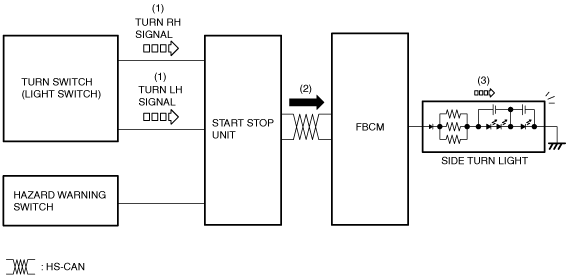

Turn light system

1. When the turn switch is operated to the LH or RH position, a turn LH or RH signal is input to the start stop unit.

2. The start stop unit sends the turn LH or RH signal to the front body control module (FBCM) via CAN communication.

3. When the front body control module (FBCM) receives the turn LH or RH signal, the side turn light (LH) or (RH) is illuminated.

ac5wzn00002934

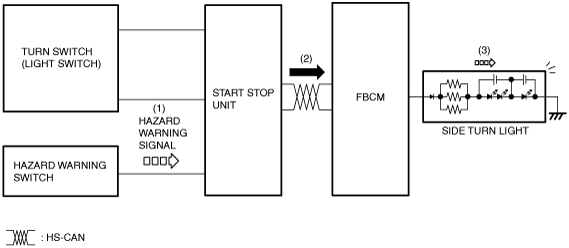

Hazard warning system

1. When the hazard warning switch is turned on, a hazard warning signal is input to the start stop unit.

2. The start stop unit sends a hazard warning signal to the front body control module (FBCM).

3. When the front body control module (FBCM) receives the hazard warning signal, the side turn lights (RH) and (LH) flash.

ac5wzn00002935

Fail-safe

• Not applicable
