RUNNING LIGHT SYSTEM

id091800011700

Outline

• The running light system automatically turns on the running lights while the vehicle is driven.

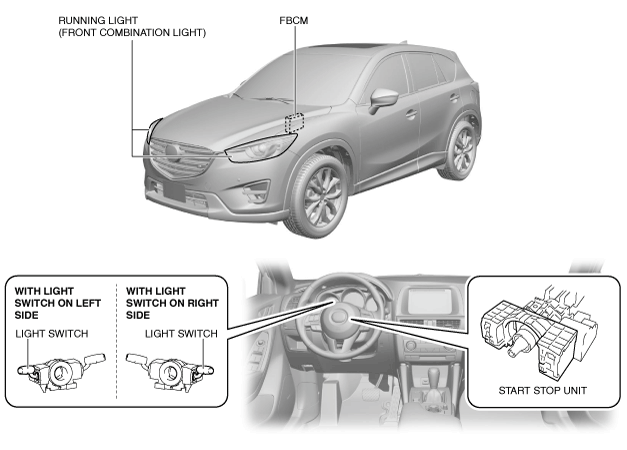

Structural View

ac5wzn00002936

System Wiring Diagram

ac5wzn00002937

Operation

• The front body control module (FBCM) turns on the running lights when the following conditions are met.

Operation condition

—: Not applicable

Engine switch condition	Electric parking brake condition	Vehicle speed	Selector lever position (ATX)	Light switch position	Dimmer switch position	Auto light system condition	Running light condition
ON (engine off or on)	Released	3 km/h {2 mph} or more	Except P	OFF	LO	—	On
					HI		On
					FLASH-TO-PASS		On
				AUTO	LO	Off	On
					LO	On	Off
					HI	Off	On
					HI	On	Off
					FLASH-TO-PASS	Off	On
					FLASH-TO-PASS	On	Off
				TNS	LO	—	Off
					HI		Off
					FLASH-TO-PASS		Off
				HEAD	LO	—	Off
					HI		Off
					FLASH-TO-PASS		Off
