LICENSE PLATE LIGHT

id091800012100

Purpose

• The license plate light turns on when the light switch is moved to the TNS or HEAD position.

Function

• The license plate lights illuminate in conjunction with the operation of the light switch.

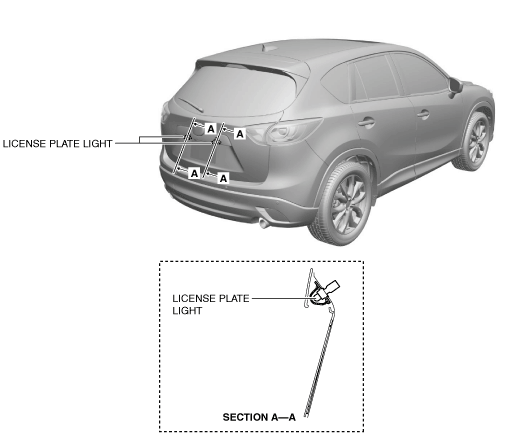

Construction

• The license plate lights are installed to the liftgate.

ac5wzn00002959

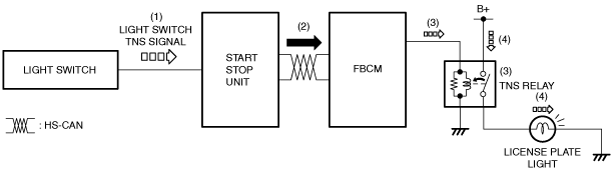

Operation

1. When the light switch is operated to the TNS position, a light switch TNS signal is input to the start stop unit.

2. The start stop unit sends the light switch TNS signal to the front body control module (FBCM).

3. When the front body control module (FBCM) receives the light switch TNS signal, it turns the TNS relay on.

4. When the TNS relay turns on, the license plate lights are illuminated.

ac5wzn00002960

Fail-safe

• Not applicable
