HEADLIGHT HIGH-BEAM INDICATOR LIGHT

id091800013600

Purpose

• Notifies the driver that the headlights HI are illuminated.

Function

• Illuminates when the headlight HI or flash-to-pass illumination conditions are met.

Construction

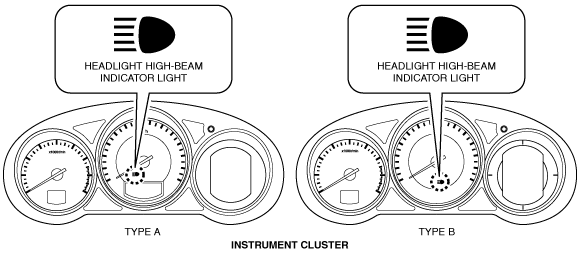

• The headlight high-beam indicator light is built into the instrument cluster.

ac5wzn00002980

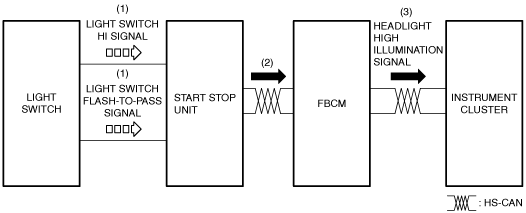

Operation

1. When the light switch is operated to the HI or FLASH-TO-PASS position, a light switch HI or FLASH-TO-PASS signal is input to the start stop unit.

2. The start stop unit sends the light switch HI or FLASH-TO-PASS signal to the front body control module (FBCM).

3. The front body control module (FBCM) sends the light switch HI or FLASH-TO-PASS signal to the instrument cluster as a headlight HI illumination signal.

4. When the instrument cluster receives the headlight HI illumination signal, it illuminates the headlight high-beam indicator light.

ac5wzn00002981

Fail-safe

• Not applicable
