FRONT FOG LIGHTS INDICATOR LIGHT

id091800013700

Purpose

• The front fog lights indicator light notifies the driver that the front fog lights are turned on.

Function

• Illuminates when the front fog light illumination conditions are met.

Construction

• The front fog lights indicator light is built into the instrument cluster.

ac5wzn00002982

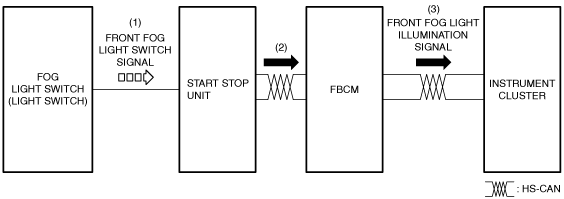

Operation

1. With the light switch in the TNS or HEAD position, a front fog light switch signal is input to the start stop unit when the fog light switch is operated to the F.FOG position.

2. The start stop unit sends the front fog light switch signal to the front body control module (FBCM).

3. The front body control module (FBCM) sends the front fog light switch signal to the instrument cluster as a front fog light illumination signal.

4. The instrument cluster illuminates the front fog lights indicator light when it receives the front fog light illumination signal.

ac5wzn00002983

Fail-safe

• Not applicable
