HEADLIGHT AIMING

id091800800400

Note

•  Perform headlight aiming if any of the following work is performed.

―  Front combination light replacement

―  Work that can affect vehicle height such as suspension replacement or removal/installation.

•  When using an aiming tester to input the inclination angle (tilt angle) of the optical axis, input 1.0% for the inclination angle.

1.  Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools equipped on the vehicle.

2.  Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION.)

3.  Move the vehicle to level ground.

4.  Make a screen shown in the figure using double-weight, white paper.

ac5wzw00000798

5.  Line up the vehicle with the wall so that the distance to the headlights is 3 m {118 in} from the wall.

ac5wzw00007402

6.  Measure the height at the center point of the headlight.

ac5wzw00007403

Note

•  Measure the height at the center point of the headlight in which the aiming is being adjusted because the vehicle height differs depending on vehicle conditions.

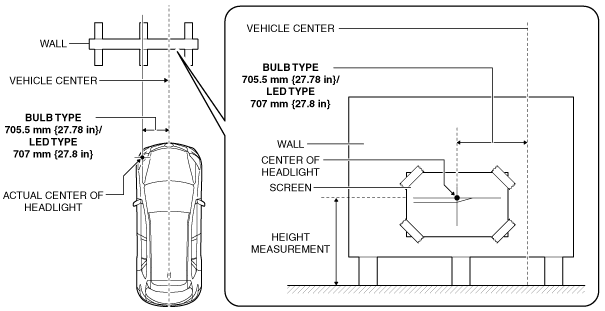

7.  Align the center of the headlight with the center of the screen.

ac5wzw00007404

8.  Set a partition in front of the headlight which is not being adjusted to block the light.

9.  Start the engine and charge the battery.

10.  Set the headlight leveling switch to the [0] position. (With headlight manual leveling system)

11.  Turn on the headlight low beams.

Note

•  For the LED type, if the headlight low beams are turned on, the light as shown in the figure is emitted to the adjustment screen.

ac5wzw00007405

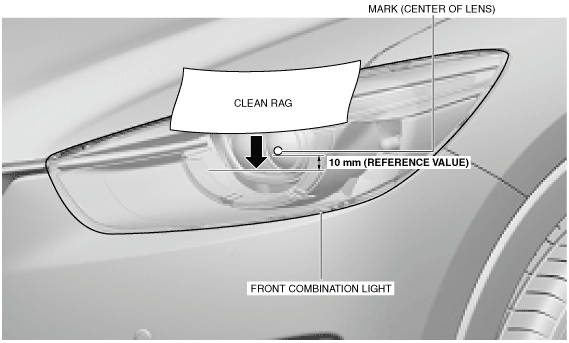

12.  Cover the upper part of the headlight with a clean rag so that the brightness border line becomes transparent. (Headlight (LED type))

ac5wzw00007406

Note

•  If the headlight is covered with a clean rag from the upper part of the headlight in the direction of the arrow shown in the figure, the yellow line disappears and the brightness border line becomes transparent.

13.  Verify that the elbow point of the headlight is at the position indicated on the adjustment screen.

•  If the elbow point of the headlight is not at the position indicated on the adjustment screen, perform the following adjustment.

(1)  Rotate the adjustment screw to adjust the headlight.

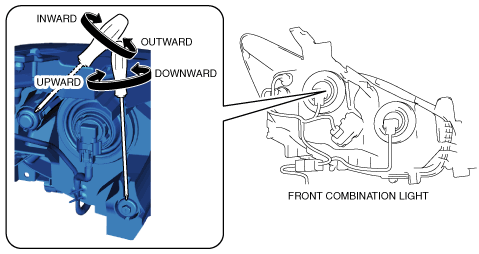

Headlight (bulb type)

ac5wzw00007407

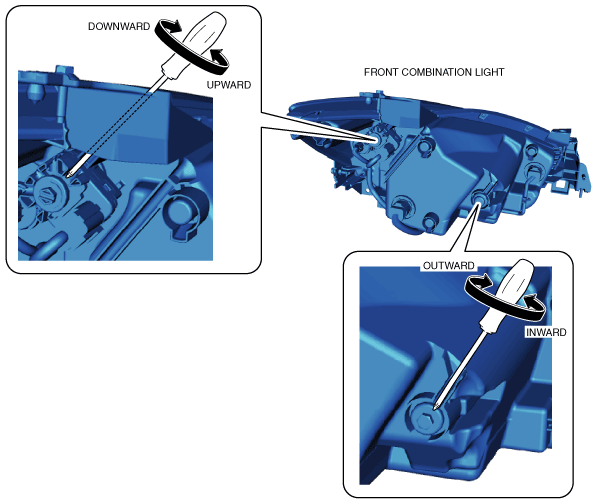

Headlight light (LED type) (without adaptive LED headlights system)

ac5wzw00007408

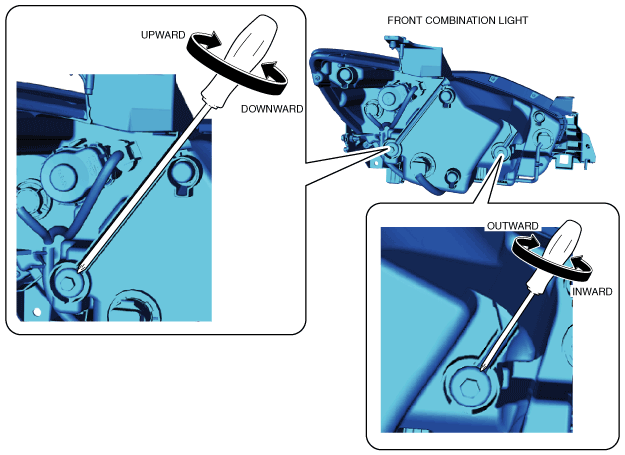

Headlight light (LED type) (with adaptive LED headlights system)

ac5wzw00007409
