MAP LIGHT INSPECTION

id091800801300

Front Map Light

1.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

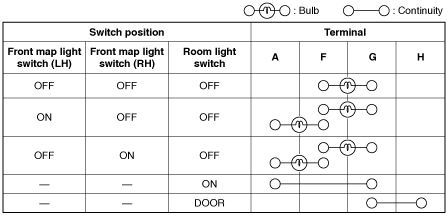

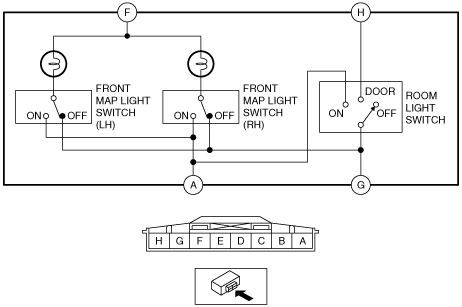

2.  Verify that the continuity between the front map light terminals is as indicated in the table.

ac5wzw00007417

ac5wzw00003021

•  If not as indicated in the table, replace the front map light or front map light bulb. (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT BULB REMOVAL/INSTALLATION.)

Rear Map Light

1.  Remove the rear map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

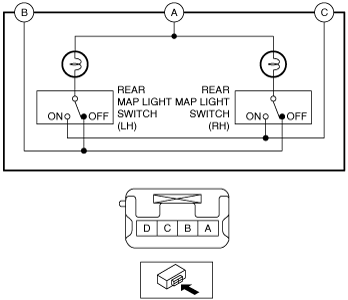

2.  Verify that the continuity between the rear map light terminals is as indicated in the table.

ac5wzw00000422

ac5wzw00000423

•  If not as indicated in the table, replace the rear map light. (See MAP LIGHT REMOVAL/INSTALLATION.)
