FRONT FOG LIGHT REMOVAL/INSTALLATION


id091800802100


Front Fog Light (Bulb Type)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the screws and bolt.

ac5wzw00007422

3.  Pull up the front under cover No.1 and remove the mudguard screw shown in the figure.

ac5wzw00007423

4.  Partially peel back the front mudguard.

5.  Disconnect the connector.

ac5wzw00000433

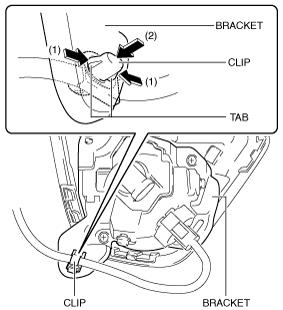

6.  While pressing the clip tab in the direction of the arrow (1) shown in the figure, press the clip in the direction of the arrow (2) shown in the figure to detach the clip tab and bracket.

ac5wzw00000817

7.  Remove the clip.

ac5wzw00000434

8.  Remove the screws.

ac5wzw00000163

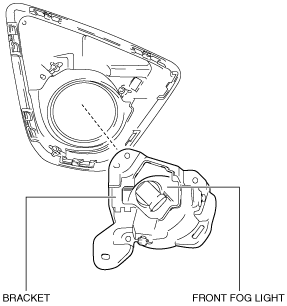

9.  Remove the front fog light and bracket.

ac5wzw00000435

10.  Remove the bolt and screw.

ac5wzw00001192

11.  Remove the front fog light.

ac5wzw00000437

12.  Install in the reverse order of removal.

13.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)


Front Fog Light (LED Type)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the screws and bolt.

ac5wzw00007422

3.  Pull up the front under cover No.1 and remove the mudguard screw shown in the figure.

ac5wzw00007423

4.  Partially peel back the front mudguard.

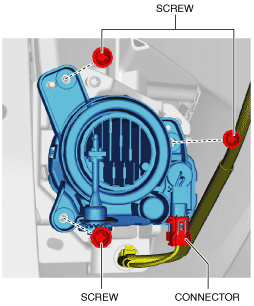

5.  Remove the screws.

ac5uuw00004119

6.  Disconnect the connector.

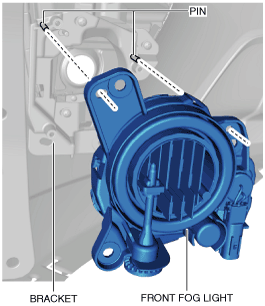

7.  Remove the front fog light.

ac5uuw00004120

8.  Install in the reverse order of removal.

9.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
