LIGHT SWITCH INSPECTION

id091800802900

Light Switch

1.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

2.  Verify that the continuity between the light switch terminals is as indicated in the table.

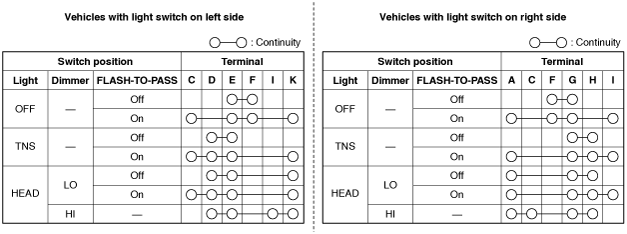

Vehicles without auto light system

ac5wzw00000030

ac5wzw00003039

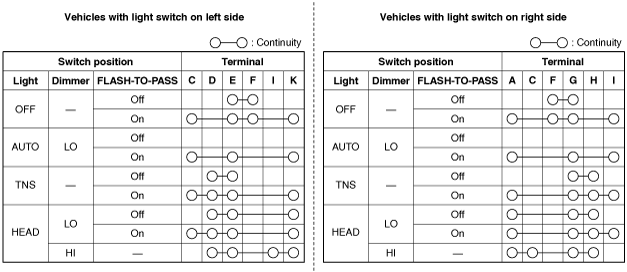

Vehicles with auto light system

ac5wzw00000031

ac5wzw00003040

•  If not as indicated in the table, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

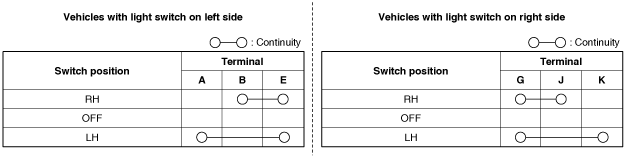

Turn Switch

1.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

2.  Verify that the continuity between the light switch terminals is as indicated in the table.

ac5wzw00000032

ac5wzw00000445

•  If not as indicated in the table, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)
