HEADLIGHT LEVELING SWITCH INSPECTION

id091800803700

1.  Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION.)

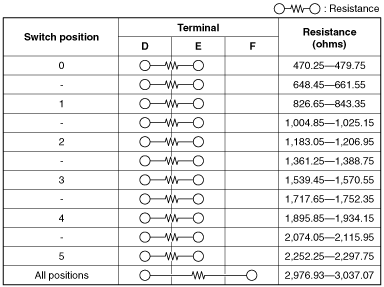

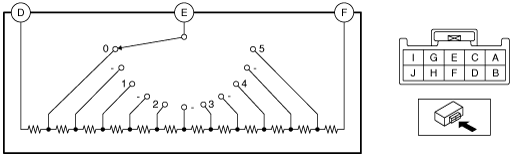

2.  Verify that the resistance between the headlight leveling switch terminals is as indicated in the table.

ac5wzw00000037

ac5wzw00007425

•  If not as indicated in the table, replace the cluster switch. (See SWITCH PANEL REMOVAL/INSTALLATION.)
