PARKING LIGHT BULB REMOVAL/INSTALLATION

id091800804200

Parking Light (Bulb Type)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

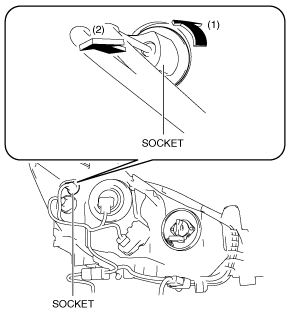

2.  Rotate the socket in the direction of the arrow (1) shown in the figure and remove it from the front combination light in the direction of the arrow (2) shown in the figure.

ac5wzw00002109

3.  Remove the parking light bulb.

ac5wzw00000451

4.  Install in the reverse order of removal.

Parking Light (LED Type)

Note

•  The LED-type parking light is integrated with the front combination light.

•  When replacing the LED-type parking light, replace the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
