WIPER/WASHER SYSTEM
id091900000600
Outline
• The following wiper/washer system has been adopted.
-
― Windshield wiper system
― Rear wiper system
― Auto wiper system (with auto wiper system)
― Washer fluid-level sensor (with washer fluid-level sensor)
― Headlight cleaner system (with headlight cleaner system)
Specification
• Windshield wiper system with continuous (low/high), auto-stop, one-touch wiper, intermittent wiper, and synchronized washer and wiper operation adopted.
-
― CAN communication has been adopted for the windshield wiper system.
― Windshield washer nozzles have been adopted in which the area where the washer fluid is sprayed can be adjusted.
• Rear wiper system with continuous, auto-stop, intermittent wiper, and synchronized washer and wiper operation adopted.
-
― CAN communication has been adopted for the rear wiper system.
― Rear washer nozzle have been adopted in which the area where the washer fluid is sprayed can be adjusted.
• An auto wiper system adopted which enables fully automatic windshield wiper operation.
-
― CAN communication has been adopted for the auto wiper system.
― A rain sensor integrated with the lens has been adopted which aggregates infrared light to detect the amount of rainfall.
― Auto wiper system personalization features has been adopted.
• A washer fluid-level sensor is installed in the washer tank.
• A pop-up type headlight cleaner has been adopted.
• Washer tank capacity
-
― With the washer fluid-level sensor: 4.5 L {4.8 US qt, 4.0 Imp qt}
― Without the washer fluid-level sensor: 2.2 L {2.3 US qt, 1.9 Imp qt}

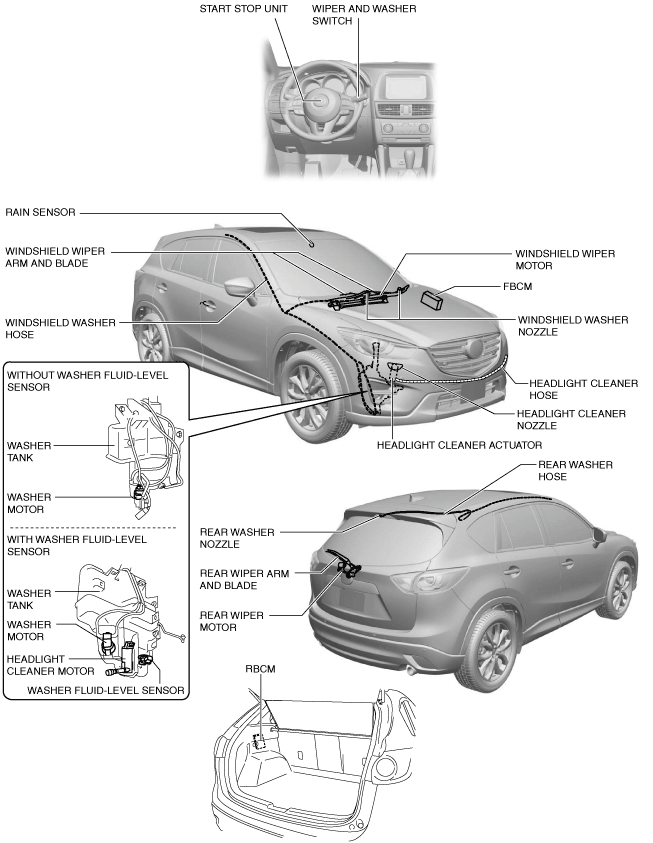

System Structural View
L.H.D.
R.H.D.
