WASHER TANK REMOVAL/INSTALLATION

id091900801700

With Washer Fluid-level Sensor

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the bolt.

ac5uuw00004208

4.  Remove the bracket.

5.  Disconnect the washer motor connector.

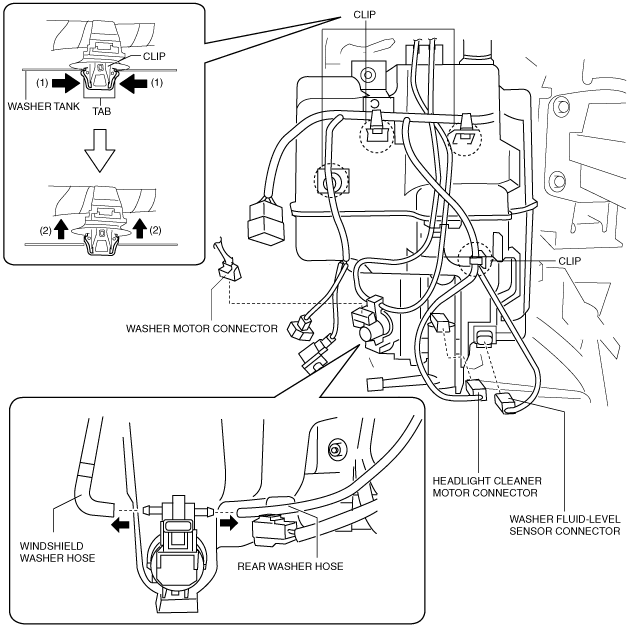

ac5wzw00007525

6.  Disconnect the headlight cleaner motor connector.

7.  Disconnect the washer fluid-level sensor connector.

8.  Disconnect the windshield washer hose.

9.  Disconnect the rear washer hose.

10.  While pressing tabs of clips in the direction of the arrows (1) shown in the figure, remove it in the direction of the arrow (2).

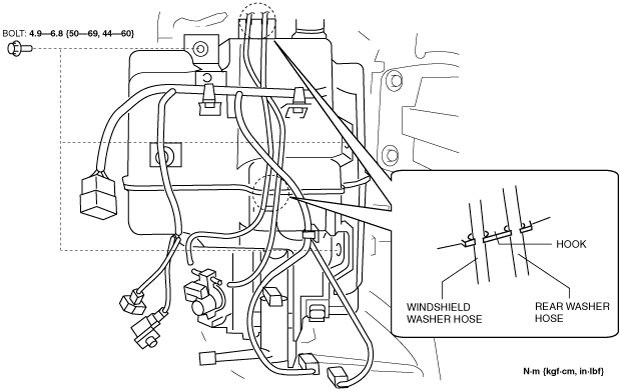

11.  Remove the windshield washer hose from the hooks.

ac5wzw00007526

12.  Remove the rear washer hose from the hooks.

13.  Remove bolts.

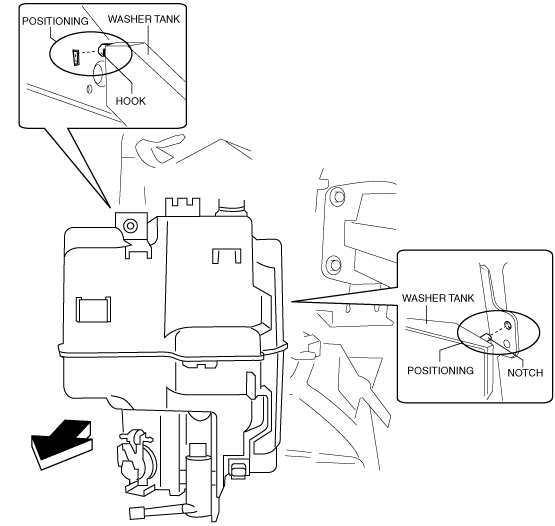

14.  Remove the washer tank positioning hook and notch from the vehicle and remove the washer tank.

ac5wzw00007527

15.  Install in the reverse order of removal.

Without Washer Fluid-level Sensor

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the bolt.

ac5uuw00004208

4.  Remove the bracket.

5.  Disconnect the connectors.

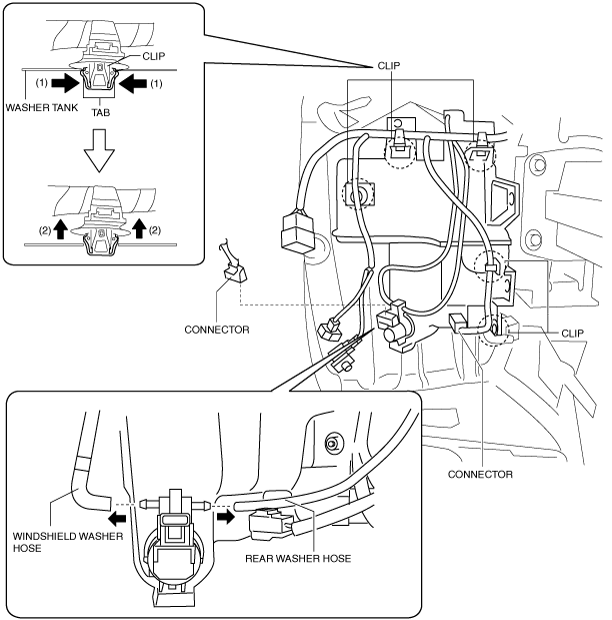

ac5uuw00004211

6.  Disconnect the windshield washer hose.

7.  Disconnect the rear washer hose.

8.  While pressing tabs of clips in the direction of the arrows (1) shown in the figure, remove it in the direction of the arrow (2).

9.  Remove the windshield washer hose from the hooks.

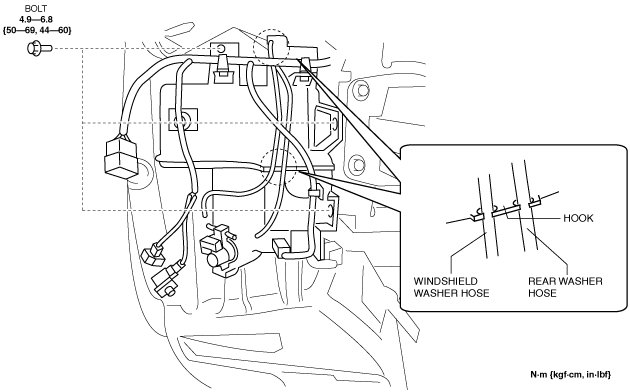

ac5uuw00004212

10.  Remove the rear washer hose from the hooks.

11.  Remove bolts.

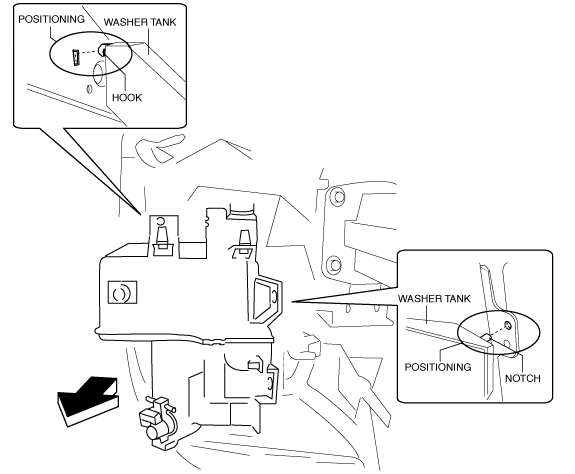

12.  Remove the washer tank positioning hook and notch from the vehicle and remove the washer tank.

ac5wzw00002978

13.  Install in the reverse order of removal.
