HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION

id091900803100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove clips from the front bumper.

ac5wzw00007532

4.  Remove the headlight cleaner hose from hooks.

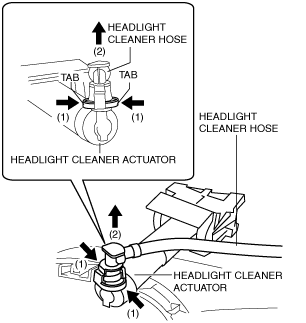

5.  While pressing tabs in the direction of arrows (1) shown in the figure, pull up the headlight cleaner hose in the direction of arrow (2) to remove it from the headlight cleaner actuator.

ac5wzw00001643

6.  Install in the reverse order of removal.
