AUDIO AMPLIFIER REMOVAL/INSTALLATION

id092000801100

1.  Slide the seat rearward (RH).

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

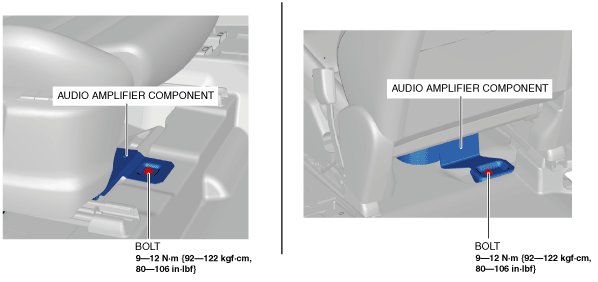

3.  Remove the bolts.

ac5wzw00007698

4.  Disconnect the connectors.

ac5wzw00007699

5.  Remove the audio amplifier component.

6.  Remove the nuts.

ac5wzw00007700

7.  Remove the audio amplifier.

8.  Install in the reverse order of removal.
