SPEAKER [WITHOUT CENTER DISPLAY]
id0920z9010300
Purpose
• The speakers output audio based on the received audio signal from the audio unit.
Function
• Full-range speakers, which can output wide-range sound from low to high frequency, have been adopted .
Specification
|
Item
|

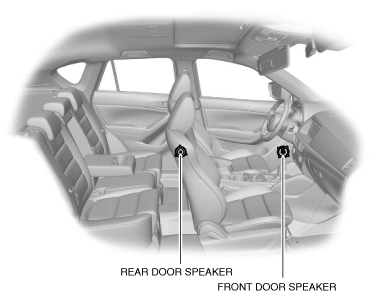

Front door speaker
|
Rear door speaker
|
|
Max. input
|
(W)
|
25
|
25
|
|
Rated impedance
|
(ohm)
|
3.4 — 4.6
|
3.4 — 4.6
|
|
Size
|
(cm {in})
|
16 {6.3}
|
16 {6.3}
|
Construction
Front door speaker/rear door speaker
-
• A cone-shaped dynamic speaker has been adopted for each speaker.
• A weight reduction was realized by using pulp for the cone material and adopting a strontium barium ferrite magnet.
Operation

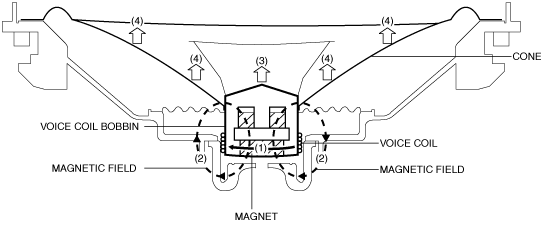

1. The speaker sends the audio signal (current) from the audio unit to the voice coil.
2. When the audio signal (current) is sent to the voice coil, the coil becomes magnetized and a magnetic field occurs. Because the voice coil and the magnet pull and repel each other in the magnetic field, the voice coil vibrates.
3. Because the voice coil is wrapped around the voice coil bobbin, the voice coil bobbin vibrates when the voice coil vibrates.
4. When the voice coil bobbin vibrates, the cone (diaphragm) installed to the voice coil bobbin vibrates and generates sound.
Fail-safe
• Not applicable
