CD PLAYER [WITH CENTER DISPLAY]

id0920zz113700


Purpose

•  The CD player sends the inserted CD file information to the connectivity master unit (CMU), and an audio signal to the tuner and amp unit (TAU).

Function


Monitor switch operation signal sent

•  When the CD player detects the operation of the integrated monitor switch, it sends a monitor switch operation signal to the parking assist unit (optical).


Specification

Type

Playback function file
Music/MP3/WMA/AAC CD player
•  Music data (CD-DA)
•  MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) files

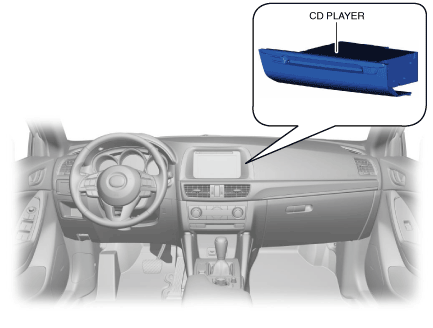

Construction

•  The CD player is located in the front console.
•  The CD player is assembled to the center display.
•  The CD player is integrated with the monitor switch. (With side camera)
ac5wzn00003484

Input/output signal table

Terminal

Signal
A
Ground
B
—
C
—
D
Illumination power supply (-)
F
—
G
Local MS-CAN_H
H
Local MS-CAN_L
J
—
L
CD audio output LH (+)
N
CD audio output LH (-)
P
CD audio output RH (+)
R
CD audio output RH (-)
S
Monitor switch operation signal output
T
—
U
—
V
—
W
TNS signal input
X
—
Y
ACC
Z
B+


Operation

•  For the CD player operation, refer to the [ENTERTAINMENT SYSTEM]. (See ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY].)

Fail-safe

•  Not applicable
