MAIN FUSE

id092100800000

Purpose

• If electric current of the specified value or more flows to each fuse, the fuse melts due to heat generation to protect the systems and parts downstream of the fuse.

Function

• If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.

Construction

• Installed to the battery terminal (+).

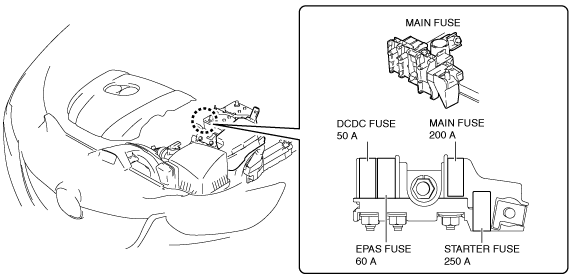

Without i-ELOOP (SKYACTIV-G 2.0,SKYACTIV-G 2.5)

ac5wzn00003320

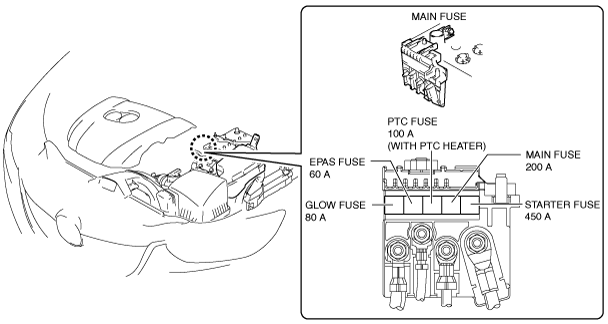

Without i-ELOOP (SKYACTIV-D 2.2)

ac5wzn00003321

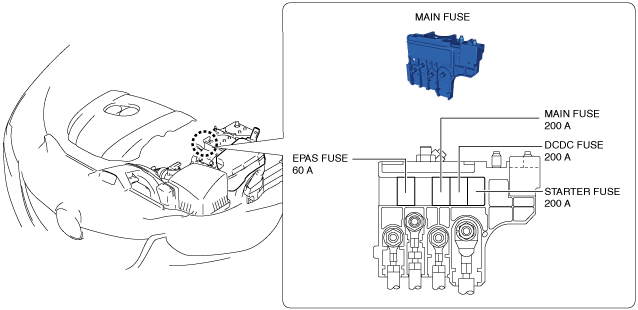

With i-ELOOP

ac5wzn00003322

Operation

1. If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.

2. Interrupts electric current flow downstream of the fuse.

Fail-safe

• Function not equipped.
