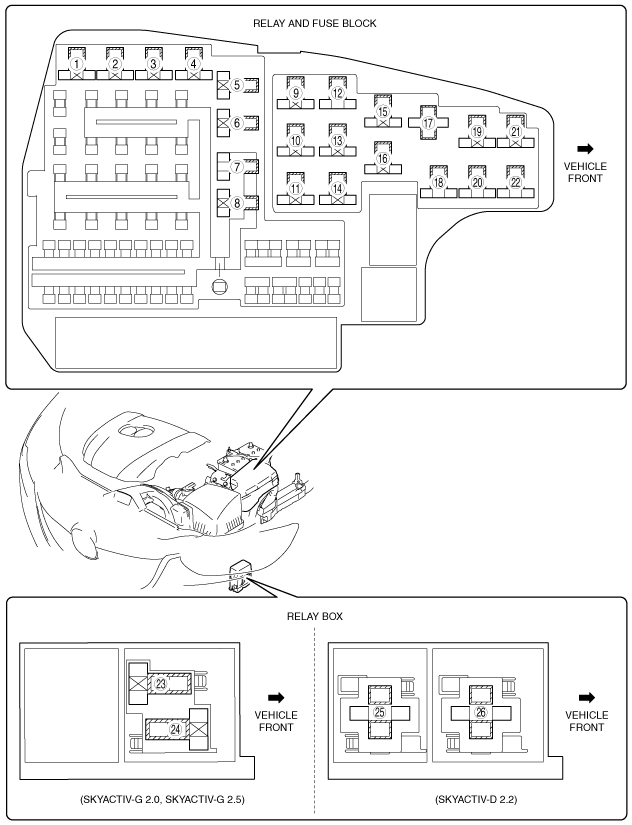

RELAY LOCATION
id092100800600
ac5wzw00007572
|
|
1
|
TNS relay
|
|
2
|
Electric AT oil pump relay
|
|
3
|
A/C relay
|
|
4
|
Headlight HI relay
|
|
5
|
SKYACTIV-G 2.0, SKYACTIV-G 2.5:
• Fuel injector relay
SKYACTIV-D 2.2:
• Check connector
|
|
6
|
Fuel pump relay
|
|
7
|
Headlight LO relay
|
|
8
|
IG1 relay
|
|
9
|
Starter relay
|
|
10
|
Outlet relay
|
|
11
|
Horn relay
|
|
12
|
Brake light relay
|
|
13
|
ACC relay
|
|
14
|
Cooling fan relay No.1
|
|
15
|
SKYACTIV-G 2.0, SKYACTIV-G 2.5:
• Electric variable valve timing relay
SKYACTIV-D 2.2:
• Blow-by heater relay
|
|
16
|
SKYACTIV-G 2.0, SKYACTIV-G 2.5:
• Cooling fan relay No.2
SKYACTIV-D 2.2:
• Ignition relay (ACC_STAB)
|
|
17
|
Blower relay
|
|
18
|
—
|
|
19
|
Rear window defogger relay
|
|
20
|
SKYACTIV-G 2.0, SKYACTIV-G 2.5:
• Cooling fan relay No.3
SKYACTIV-D 2.2:
• Ignition relay (IG1_STAB)
|
|
21
|
Front fog light relay
|
|
22
|
Main relay
|
|
23
|
Ignition relay (ACC_STAB)
|
|
24
|
Ignition relay (IG1_STAB)
|
|
25
|
Cooling fan relay No.2
|
|
26
|
Cooling fan relay No.1
|
