MAIN FUSE REMOVAL/INSTALLATION

id092100801500

WITHOUT i-ELOOP

SKYACTIV-G 2.0, SKYACTIV-G 2.5

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

ac5wzw00007573

3. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, pull up the main fuse cover in the direction of the arrow (2) shown in the figure, and detach the main fuse cover tab from the main fuse.

ac5uuw00002739

4. Remove the main fuse cover.

ac5wzw00000527

5. Remove the nuts.

ac5wzw00007574

6. Remove the main fuse.

7. Install in the reverse order of removal.

SKYACTIV-D 2.2

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

ac5wzw00007575

ac5uuw00002749

4. Remove the main fuse cover.

ac5wzw00007576

5. Remove the nuts.

ac5wzw00007577

6. Remove the main fuse.

7. Install in the reverse order of removal.

WITH i-ELOOP

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

2. While pressing the main fuse cover hook in the direction of the arrow (1) shown in the figure using a tape-wrapped flathead screwdriver, lift up the main fuse cover in the direction of the arrow (2) to detach the main fuse cover hook from the main fuse tab.

ac5wzw00007578

3. Remove the main fuse cover.

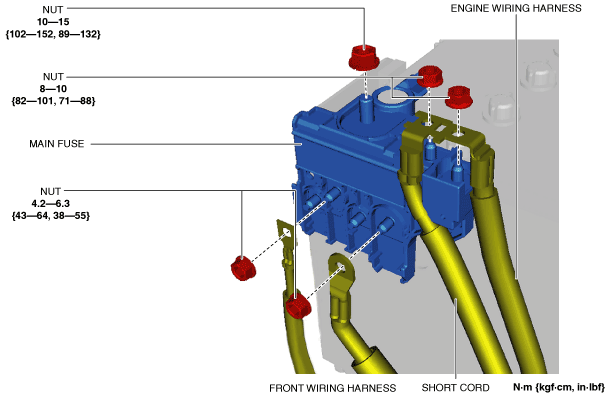

4. Remove the nuts.

am6zzw00012910

5. Remove the main fuse.

6. Install in the reverse order of removal.
