PUSH BUTTON START INSPECTION

id092100802300

1.  Remove the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

2.  Verify that the continuity between the push button start terminals is as indicated in the table.

ac5wzw00000090

ac5wzw00000529

•  If the continuity can be verified as indicated in the table, go to the next step.

•  If not as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

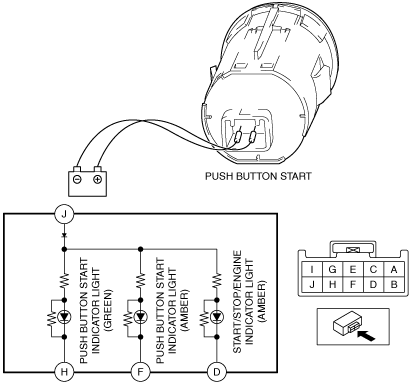

3.  Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.

ac5wzw00004637

ac5wzw00001105

•  If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)
