RELAY BOX


id092100900300


Purpose

•  Relays used by each system are grouped and housed together for smooth inspection and replacement servicing.

Function

•  Relays used by each system are grouped and housed together.

Construction

•  Installed the inside front bumper.

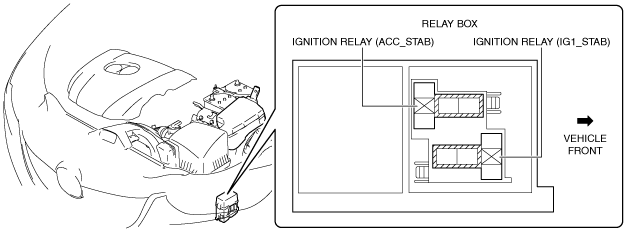

SKYACTIV-G 2.0, SKYACTIV-G 2.5

ac5wzn00003325

SKYACTIV-D 2.2

ac5wzn00003326

Operation


Relay operation

1.  When electric current flows to the coil, electromagnetic power is generated.

2.  The switch is attracted by the generated electromagnetic power and switches on.

3.  Electric current flows to each part downstream of the fuse.

ac5wzn00000285


Fail-safe

•  Function not equipped.
