HORN INSPECTION

id092200012700

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the horn. (See HORN REMOVAL/INSTALLATION.)

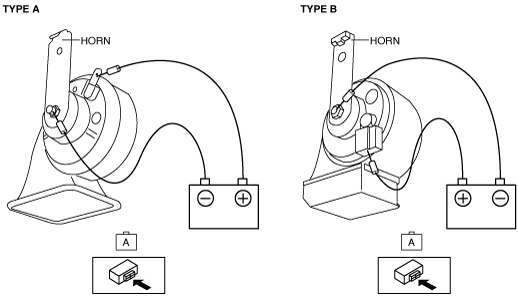

4.  Apply battery positive voltage to horn terminal A, and connect the horn retaining bolt to ground as shown in the figure, and then verify that the horn sounds.

ac5jjw00000655

•  If the horn does not sound, replace the horn.
