INSTRUMENTATION/DRIVER INFO.
id092200018200
Outline
Specification
Item |
Specification |
||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Instrument cluster
|
Warning lights
|
Brightness level
|
(cd/m2)
|
200―300
|
|||||||||||||||
Light source
|
LED
|
||||||||||||||||||
Indicator lights
|
Brightness level
|
(cd/m2)
|
36―300
|
||||||||||||||||
Light source
|
LED
|
||||||||||||||||||
Warning beep
|
Oscillation frequency
|
(Hz)
|
1,500―2,000
|
||||||||||||||||
Output sound pressure
|
(dB)
|
65.0―80.0
|
|||||||||||||||||
Speedometer
|
System
|
Stepping motor type
|
|||||||||||||||||
Display
|
Analog needle
|
||||||||||||||||||
Input signal communication system
|
CAN system
|
||||||||||||||||||
Tachometer
|
System
|
Stepping motor type
|
|||||||||||||||||
Display
|
Analog needle
|
||||||||||||||||||
Input signal communication system
|
CAN system
|
||||||||||||||||||
Low engine coolant temperature indicator light/High engine coolant temperature warning light
|
Operation
|
—
|
|||||||||||||||||
Input signal communication system
|
CAN system
|
||||||||||||||||||
Fuel gauge
|
System
|
LCD
|
|||||||||||||||||
Input signal source
|
Fuel gauge sender unit
|
||||||||||||||||||
Remaining fuel quantity (L {US gal, lmp gal}) in fuel tank (instrument cluster type A)
|
Needle position
|
EMPTY
|
1/4
|
2/4
|
3/4
|
FULL
|
|||||||||||||
2WD
|
Approx. 6 {2, 1}
|
Approx. 17 {4.5, 3.7}
|
Approx. 28 {7.4, 6.2}
|
Approx. 38 {10, 8.4}
|
Approx. 49 {13, 11}
|
||||||||||||||
4WD
|
Approx. 6 {2, 1}
|
Approx. 18 {4.8, 4.0}
|
Approx. 29 {7.7, 6.4}
|
Approx. 40 {11, 8.8}
|
Approx. 51 {13, 11}
|
||||||||||||||
Instrument cluster
|
Fuel gauge
|
Remaining fuel quantity (L {US gal, lmp gal}) in fuel tank (instrument cluster type B)
|
Segment indication number
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
|
2WD (SKYACTIV-G 2.0)
|
6—8 {1.6—2.1, 1.4—1.7}
|
8—10 {3.0—2.6, 2.0—2.1}
|
10—12 {2.7—3.1, 2.2—2.6}
|
12—14 {3.2—3.6, 2.7—3.0}
|
14—16 {3.7—4.2, 3.1—3.5}
|
16—18 {4.3—4.7, 3.6—3.9}
|
18—22 {4.8—5.8, 4.0—4.8}
|
22—24 {5.9—6.3, 4.9—5.2}
|
24—26 {6.4—6.8, 5.3—5.7}
|
26—30 {6.9—7.9, 5.8—6.5}
|
30—34 {8.0—8.9, 6.6—7.4}
|
34—38 {9.0—10.0, 7.5—8.3}
|
38—42 {10.1—11, 8.4—9.2}
|
42—46 {11.1—12.1, 9.3—10.0}
|
46—58 {13—15, 11—12}
|
||||
2WD (SKYACTIV-D 2.2)
|
6—8 {1.6—2.1, 1.4—1.7}
|
8—10 {3.0—2.6, 2.0—2.1}
|
10—12 {2.7—3.1, 2.2—2.6}
|
12—14 {3.2—3.6, 2.7—3.0}
|
14—16 {3.7—4.2, 3.1—3.5}
|
16—18 {4.3—4.7, 3.6—3.9}
|
18—22 {4.8—5.8, 4.0—4.8}
|
22—26 {5.9—6.8, 4.9—5.7}
|
26—30 {6.9—7.9, 5.8—6.5}
|
30—34 {8.0—8.9, 6.6—7.4}
|
34—38 {9.0—10.0, 7.5—8.3}
|
38—42 {10.1—11, 8.4—9.2}
|
42—46 {11.1—12.1, 9.3—10.0}
|
46—50 {12.2—13.2, 10.2—10.9}
|
50—56 {13.3—14.7, 11—12}
|
||||
4WD
|
6—8 {1.6—2.1, 1.4—1.7}
|
8—10 {3.0—2.6, 2.0—2.1}
|
10—12 {2.7—3.1, 2.2—2.6}
|
12—14 {3.2—3.6, 2.7—3.0}
|
14—16 {3.7—4.2, 3.1—3.5}
|
16—18 {4.3—4.7, 3.6—3.9}
|
18—22 {4.8—5.8, 4.0—4.8}
|
22—24 {5.9—6.3, 4.9—5.2}
|
24—26 {6.4—6.8, 5.3—5.7}
|
26—30 {6.9—7.9, 5.8—6.5}
|
30—34 {8.0—8.9, 6.6—7.4}
|
34—38 {9.0—10.0, 7.5—8.3}
|
38—42 {10.1—11, 8.4—9.2}
|
42—46 {11.1—12.1, 9.3—10.0}
|
46—58 {13—15, 11—12}
|
||||
Remaining fuel level (L {US gal, lmp gal}) when fuel tank level warning light illuminates
|
Approx. 10 {2.6, 2.2}
|
||||||||||||||||||
Invalid remaining fuel level. (L {US gal, lmp gal})
|
2WD
|
Approx. 1.36 {0.359, 0.299}
|
|||||||||||||||||
4WD
|
Approx. 0.45 {0.12, 0.099}
|
||||||||||||||||||
Odometer
|
System
|
LCD
|
|||||||||||||||||
Display area
|
0—999,999
|
||||||||||||||||||
Minimum display unit
|
(km {mile})
|
1 {0.6}
|
|||||||||||||||||
Input signal communication system
|
CAN system
|
||||||||||||||||||
Instrument cluster
|
Tripmeter
|
System
|
LCD
|
||||||||||||||||
Display area
|
Returns to 0.0 from 999.9, calculation continues
|
||||||||||||||||||
Minimum display unit
|
(km {mile})
|
0.1 {0.06}
|
|||||||||||||||||
Input signal communication system
|
CAN system
|
||||||||||||||||||
Horn
|
Low
|
Type A
|
Oscillation frequency
|
(Hz)
|
370―430
|
||||||||||||||
Waveform
|
Spiral
|
||||||||||||||||||
Type B
|
Oscillation frequency
|
(Hz)
|
390―440
|
||||||||||||||||
Waveform
|
Spiral
|
||||||||||||||||||
High
|
Oscillation frequency
|
(Hz)
|
470―530
|
||||||||||||||||
Waveform
|
Spiral
|

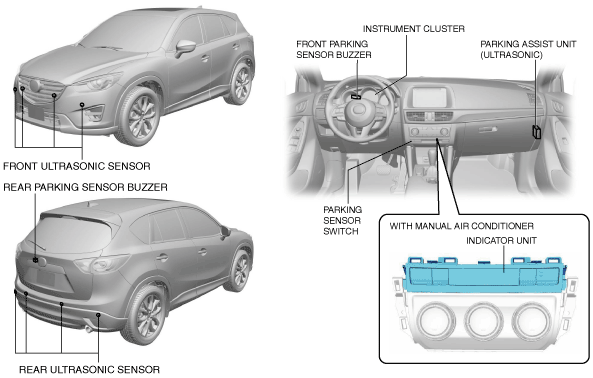

Structural View
ac5wzn00003057
|
