LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED)

id092200018300

Purpose

Low engine coolant temperature indicator light (blue)

• The low engine coolant temperature indicator light (blue) notifies the driver that the engine coolant temperature is low and vaporization of the fuel is difficult.

High engine coolant temperature warning light (red)

• The high engine coolant temperature warning light (red) notifies the driver that the engine coolant temperature is high and that there is the danger of overheating.

Function

Low engine coolant temperature indicator light (blue)

• The low engine coolant temperature indicator light (blue) illuminates when the engine coolant temperature is low.

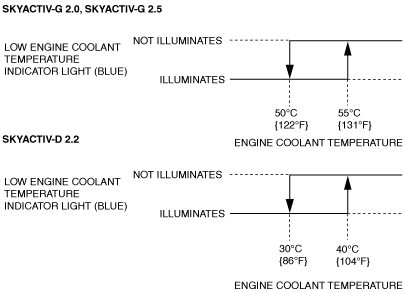

• The illumination condition of the low engine coolant temperature indicator light (blue) is as shown in the figure.

am6zzn00002821

High engine coolant temperature warning light (red)

• The high engine coolant temperature warning light flashes at 0.5 s intervals when the engine coolant temperature exceeds the set value, and illuminates if the temperature increases further.

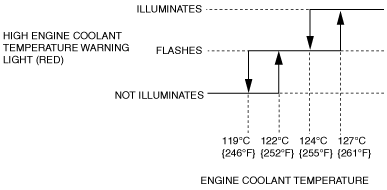

• The flashing/illumination condition of the high engine coolant temperature warning light (red) is as shown in the figure.

ac5wzn00000625

• The Type A instrument cluster displays a warning message in the multi-information display simultaneously when the high engine coolant temperature warning light (red) illuminates.

am6zzn00003377

Construction

• Illumination, flashing, or turning off of the low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red) is controlled by the instrument cluster microcomputer based on the engine coolant temperature signal from the PCM.

• The low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red) is set in the instrument cluster.

am6zzn00003378

Operation

Low engine coolant temperature indicator light (blue)

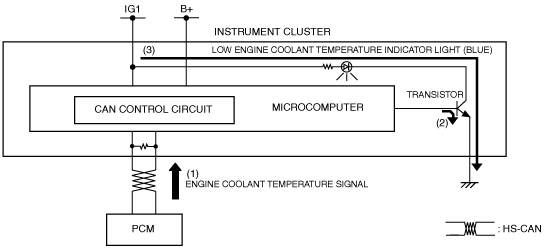

1. When the ignition is switched ON (while engine is running), the instrument cluster receives (1) the engine coolant temperature signal from the PCM via the CAN signal.

2. The instrument cluster turns the transistor on (2) based on the engine coolant temperature signal.

3. When the transistor turns on, the ground circuit of the low engine coolant temperature indicator light (blue) is established and the low engine coolant temperature indicator light (blue) illuminates (3).

ac5wzn00000628

High engine coolant temperature warning light (red)

1. When the ignition is switched ON (while engine is running), the instrument cluster receives (1) the engine coolant temperature signal from the PCM via the CAN signal.

2. The instrument cluster turns the transistor on (2) intermittently for flashing and continuously for illumination based on the engine coolant temperature signal.

3. The high engine coolant temperature warning light (red) flashes (3) when the transistor is turned on intermittently, and it illuminates (3) when the transistor is turned on continuously.

ac5wzn00000629

Fail-safe

• Function not equipped.
