HORN

id092200021700

Purpose, Function

• The horn sounds according to the horn switch operation.

Construction

• Installed to the inside of the front grille.

• The diaphragm is vibrated to apply vibration to the air and produce sound.

ac5wzn00003350

Operation

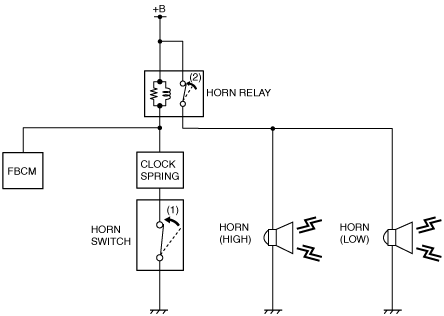

1. When the horn switch turns on (1), the horn relay turns on (2).

2. When the horn relay turns on, the horn sounds.

ac5wzn00003351

Fail-safe

• Function not equipped.
