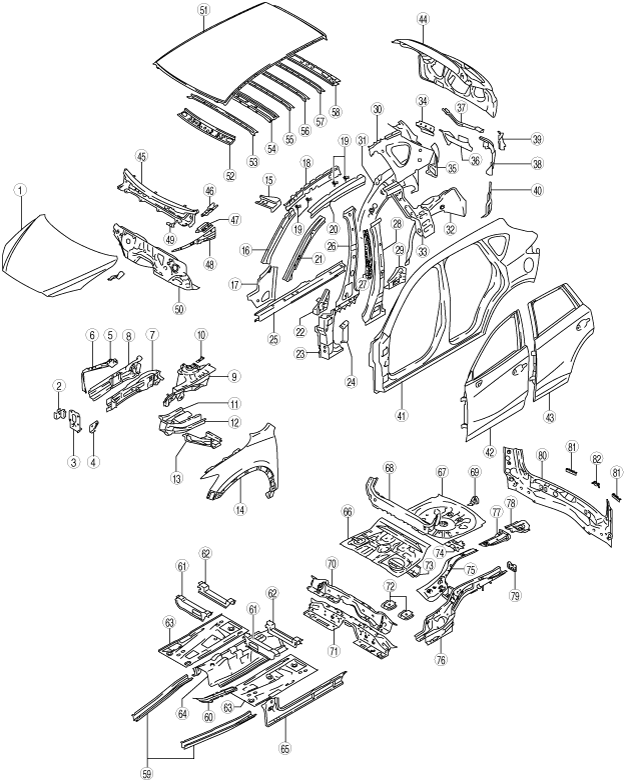

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700

ac5wzb00000307

x:Applied
-:Not applied

No.

Part Name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
X
X
0.65
{0.026}
2
Suspension mounting reinforcement
-
X
X
2.90
{0.114}
3
Bumper bracket
X
-
X
2.60
{0.102}
4
Outer frame reinforcement
-
X
X
2.00
{0.0787}
5
Shroud upper reinforcement
-
-
X
0.90
{0.035}
6
Shroud side member component
Apron reinforcement (lower)
-
X
X
0.80
{0.031}
Side stay
-
-
X
1.20
{0.0472}
Shroud side panel
-
X
X
0.90
{0.035}
7
Front side frame (outer)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
8
Front side frame (inner)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
9
Wheel apron component
Apron upper reinforcement
-
-
X
1.00
{0.0394}
Apron reinforcement No.3
X
-
X
1.20
{0.0472}
Cowl side Reinforcement inner
-
X
X
1.00
{0.0394}
Suspension housing (lower)
-
-
X
0.80
{0.031}
10
Front fender junction
-
-
X
0.80
{0.031}
11
Side member
-
-
X
1.60
{0.0630}
12
Front frame (rear)
X
-
X
2.00
{0.0787}
13
Torque box
-
X
X
1.40
{0.0551}
14
Front fender panel
-
-
X
0.70
{0.028}
15
Front pillar upper reinforcement
-
X
-
0.70
{0.028}
16
Inner front pillar
X
-
-
1.40
{0.0551}
17
Inner hinge pillar
X
-
X
1.20
{0.0472}
18
Roof rail (inner)
X
-
-
1.20
{0.0472}
19
Nut plate
-
-
-
1.20
{0.0472}
20
Roof rail reinforcement
X
-
-
1.20
{0.0472}
21
Front pillar reinforcement
X
-
-
1.60
{0.0630}
22
Front pillar reinforcement
X
-
-
1.60
{0.0630}
23
Hinge reinforcement
Upper
X
-
-
1.20
{0.0472}
Lower
X
-
-
1.60
{0.0630}
24
Upper cowl side reinforcement
-
X
X
1.60
{0.0630}
25
Side sill reinforcement
X
-
X
1.40
{0.0551}
26
Inner center pillar
-
X
X
1.20
{0.0472}
27
Center pillar inner reinforcement
X
-
-
2.30
{0.0906}
28
Center pillar reinforcement
Upper
X
-
-
2.00
{0.0787}
Lower
X
-
-
2.00
{0.0787}
29
Side sill reinforcement rear
X
-
X
1.80
{0.0709}
30
Inner rear pillar
-
-
X
0.70
{0.028}
31
Wheel housing (outer)
-
-
X
0.65
{0.026}
32
Wheel housing (inner)
-
-
X
0.70
{0.028}
33
Suspension housing reinforcement
Upper
X
-
-
1.20
{0.0472}
Center
-
-
-
0.65
{0.026}
Lower
-
-
-
1.80
{0.0709}
34
Rear side panel
-
-
X
0.65
{0.026}
35
Corner junction
-
-
-
1.00
{0.0394}
36
D-pillar reinforcement (upper)
-
-
-
0.70
{0.028}
37
Rear pillar outer
-
-
X
0.70
{0.028}
38
D-pillar reinforcement (lower)
-
-
-
0.70
{0.028}
39
Corner plate
-
-
X
0.70
{0.028}
40
Rear fender lower panel
-
-
X
0.70
{0.028}
41
Cabin side outer frame
-
-
X
0.70
{0.028}
42
Front door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
43
Rear door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
44
Liftgate
Outer panel
-
-
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
45
Dash and cowl component
Cowl panel
-
-
X
0.65
{0.026}
Dash upper panel
-
-
X
0.90
{0.035}
46
Wiper bracket
-
X
X
1.40
{0.0551}
47
Cowl upper plate
-
X
X
1.40
{0.0551}
48
Cowl side reinforcement lower
Front
-
X
X
0.80
{0.031}
Rear
X
-
X
1.20
{0.0472}
49
Wiper bracket
-
-
X
1.20
{0.0472}
50
Dash lower component
Dash lower panel
-
-
X
0.80
{0.031}
Tunnel junction No.1
-
-
X
0.90
{0.035}
51
Roof panel
-
-
-
0.75
{0.030}
52
Front header
-
X
-
0.65
{0.026}
53
Roof reinforcement No.1
-
-
-
0.55
{0.022}
54
Roof reinforcement No.2
X
-
-
1.00
{0.0394}
55
Roof reinforcement No.3
-
-
-
0.55
{0.022}
56
Roof reinforcement No.4
-
-
-
0.55
{0.022}
57
Roof reinforcement No.5
-
-
-
0.55
{0.022}
58
Rear header
Upper
-
-
-
0.65
{0.026}
Lower
-
-
X
0.70
{0.028}
59
Front B frame
Front
X
-
X
1.40
{0.0551}
Rear
X
-
X
1.00
{0.0394}
60
Floor reinforcement
X
-
-
1.20
{0.0472}
61
Crossmember No.2
X
-
-
1.00
{0.0394}
62
Crossmember No.2.5
X
-
-
1.20
{0.0472}
63
Front floor side panel
-
-
X
0.60
{0.024}
64
Tunnel reinforcement
X
-
X
0.90
{0.035}
65
Side sill (inner)
Front
X
-
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
66
Center floor panel
-
-
X
0.60
{0.024}
67
Trunk floor panel
-
-
X
0.60
{0.024}
68
Rear floor front reinforcement
-
X
-
0.90
{0.035}
69
Brace reinforcement
-
-
-
1.60
{0.0630}
70
Crossmember No.3 (upper)
-
-
X
0.60
{0.024}
71
Crossmember No.3 (lower)
X
-
X
1.00
{0.0394}
72
Anchor reinforcement
-
X
X
1.20
{0.0472}
73
Crossmember No.4 (front)
-
X
X
1.00
{0.0394}
74
Crossmember No.4 (rear)
Center
-
-
X
0.70
{0.028}
Side
-
-
X
1.20
{0.0472}
75
Rear frame reinforcement
X
-
X
0.90
{0.035}
76
Rear side frame
Front
X
-
X
1.80
{0.0709}
Center
X
-
X
1.80
{0.0709}
Rear
X
-
X
1.60
{0.0630}
77
Floor side panel No.1
Front
X
-
X
1.40
{0.0551}
Rear
-
X
X
2.00
{0.0787}
78
Floor side panel No.2
-
-
X
0.70
{0.028}
79
Rear bumper bracket
X
-
X
2.00
{0.0787}
80
Rear end panel component
Rear end panel
-
-
X
1.00
{0.0394}
Rear end member
-
-
-
0.70
{0.028}
81
Rear bumper reinforcement No.1
-
-
X
1.00
{0.0394}
82
Rear bumper reinforcement No.2
-
-
X
1.00
{0.0394}
