TORQUE BOX INSTALLATION [PANEL REPLACEMENT]

id098008607200

Symbol Mark

ac5wzb00000208

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

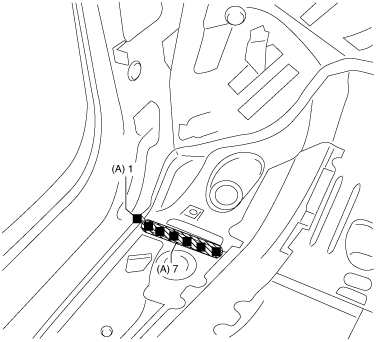

4.  Plug weld the 8 locations indicated by (A) from the inside shown in the figure.

ac5wzb00000058

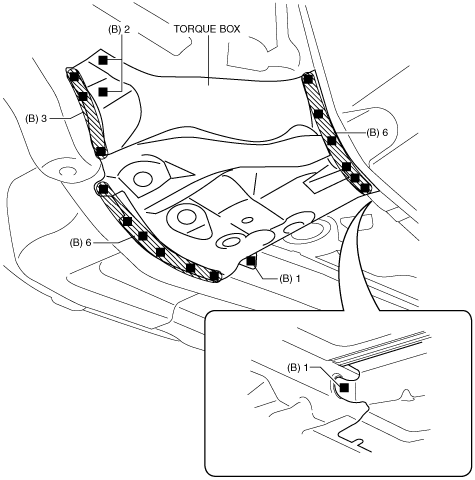

5.  Plug weld the 19 locations indicated by (B) shown in the figure, then install the torque box.
