REAR FENDER LOWER PANEL REMOVAL [PANEL REPLACEMENT]

id098008614100

Symbol Mark

ac5wzb00000072

Removal Procedure

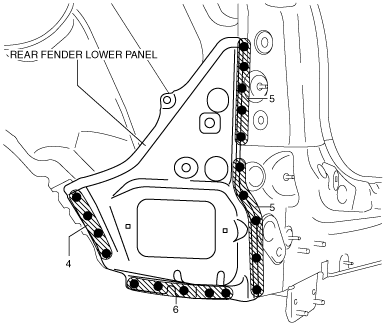

1.  Drill the 20 locations shown in the figure.

ac5uub00000073

2.  Remove the rear fender lower panel.
