FLOOR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008618800

Symbol Mark

ac5wzb00000224

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

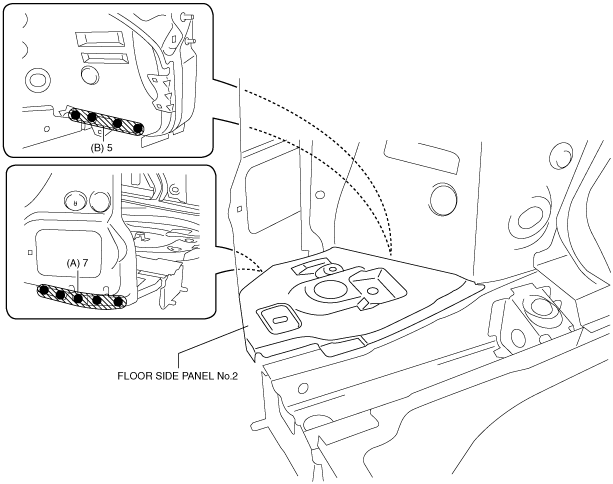

4.  Spot weld the 7 locations indicated by (A) shown in the figure.

5.  Spot weld the 5 locations indicated by (B) shown in the figure, then install the floor side panel No.2.

ac5wzb00000263

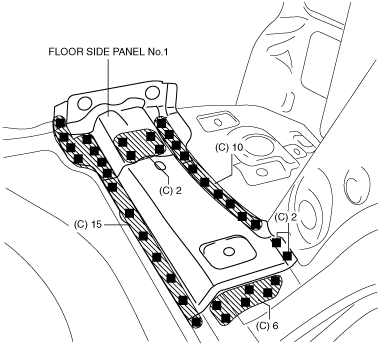

6.  Plug weld the 35 locations indicated by (C) shown in the figure, then install the floor side panel No.1.

ac5wzb00000147
