FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]
id098008742100
Symbol Mark
ac5jjb00000063
|
Removal Procedure
1. Drill the 4 locations indicated by (A) shown in the figure, then remove suspension mounting reinforcement and outer frame reinforcement.
2. Rough cut location indicated by (B) shown in the figure.
3. Drill the 6 locations indicated by (C) shown in the figure, then remove the front side frame (inner).
ac5wzb00000313
|

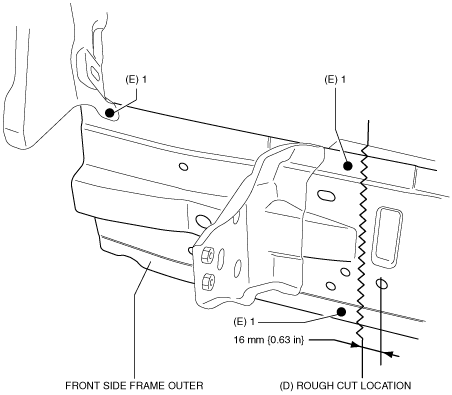

4. Rough cut location indicated by (D) shown in the figure.
5. Drill the 3 locations indicated by (E) shown in the figure.
ac5wzb00000314
|
6. Remove the front side frame (outer).
