FRONT FRAME (REAR) INSTALLATION [PANEL REPLACEMENT]

id098008742600

Symbol Mark

ac5wzb00000219

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

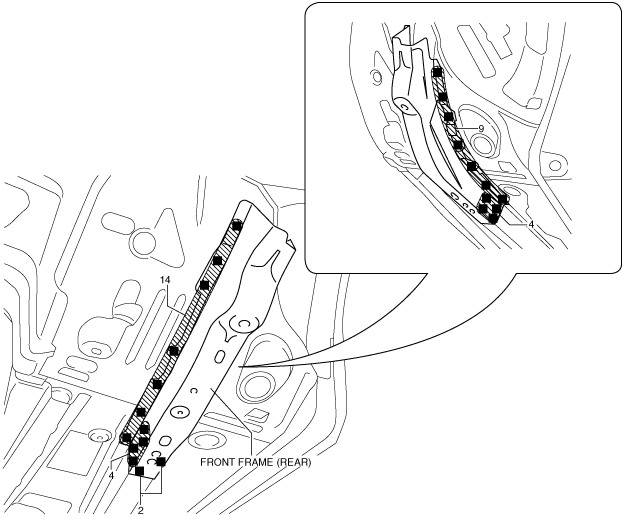

4.  Plug weld the 33 locations shown in the figure, then install the front frame (rear).
