REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Mark

ac5wzb00000080

Removal Procedure

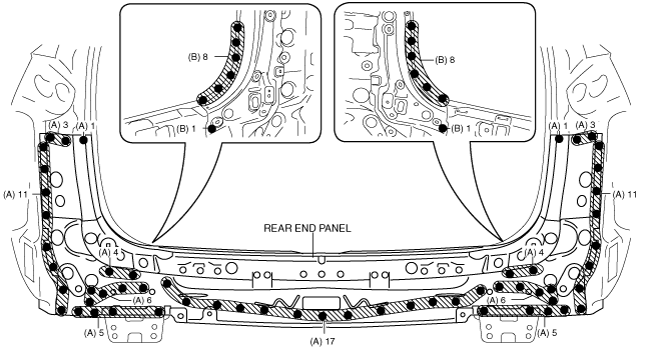

1.  Drill the 77 locations indicated by (A) shown in the figure.

2.  Drill the 18 locations indicated by (B) from room side shown in the figure.

ac5uub00000037

3.  Remove the rear end panel.
