REAR END PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744600

Symbol Mark

ac5wzb00000226

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

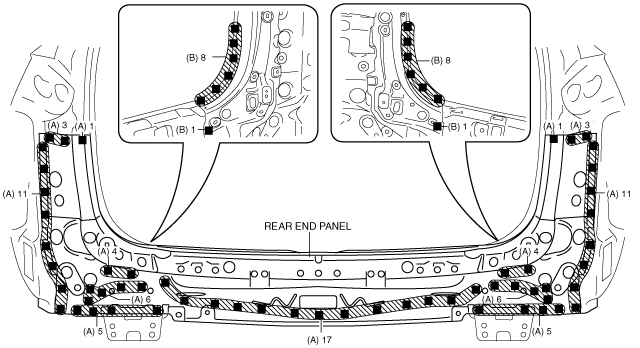

4.  Plug weld the 77 locations indicated by (A) shown in the figure.

5.  Plug weld the 18 locations indicated by (B) from room side shown in the figure, then install the rear end panel.

ac5uub00000036
