REAR FENDER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008745000

Symbol Mark

ac5wzb00000222

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

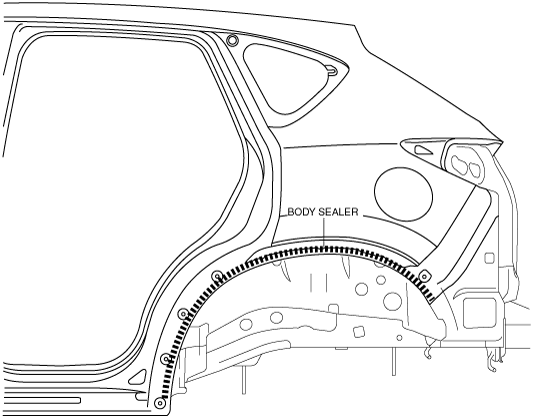

4.  Before installing new parts, apply body sealer to the wheel arch line.

ac5wzb00000124

5.  Cut and join the 3 locations indicated by (A) shown in the figure.

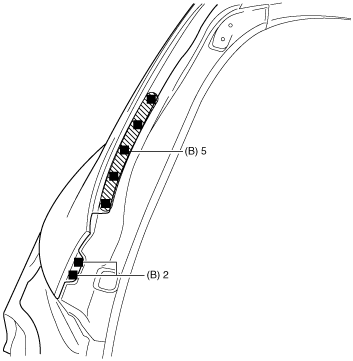

6.  Plug weld the 95 locations indicated by (B) shown in the figure, then install the cabin side outer frame (rear fender panel).

ac5uub00000072

ac5wzb00000126
