UPPER COWL SIDE REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008828500

Symbol Mark

ac5wzb00000029

Removal Procedure

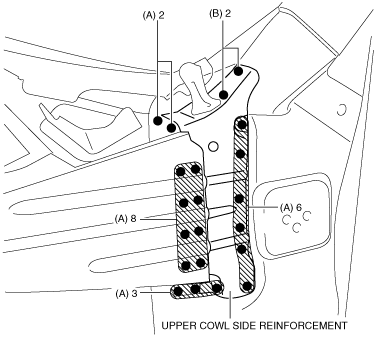

1.  Drill the 13 locations indicated by (A) shown in the figure.

2.  Drill the 8 locations indicated by (B) shown in the figure.

Note

•  When a drill the 8 locations indicated by (B) shown in the figure, the through hole is not made in consideration of the workability at the installing.

3.  Remove the upper cowl side reinforcement.

ac5wzb00000264
