LOWER COWL SIDE REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008828700

Symbol Mark

ac5wzb00000033

Removal Procedure

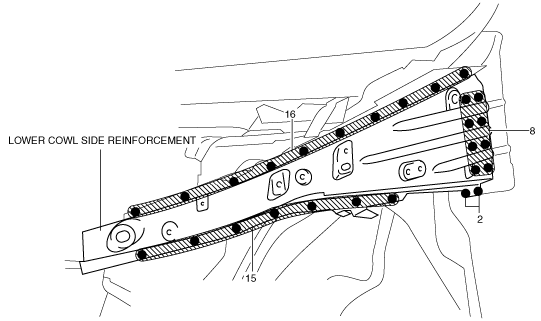

1.  Drill the 41 locations shown in the figure.

ac5wzb00000265

2.  Remove the lower cowl side reinforcement.
