REAR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008829100

Symbol Mark

ac5wzb00000084

Removal Procedure

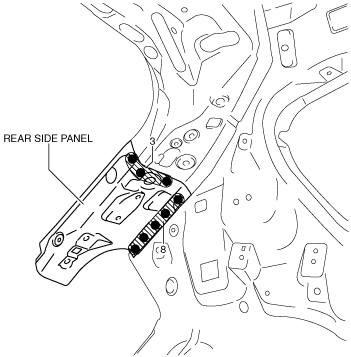

1.  Drill the 11 locations shown in the figure.

ac5wzb00000140

2.  Remove the rear side panel.
